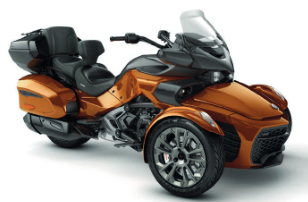

2024 SPYDER F3 LIMITED SPECIAL SERIES

2024 SPYDER F3 LIMITED SPECIAL SERIESENGINE
SPYDER F3 LIMITED SPECIAL SERIES
Type Rotax® 1330 ACE ™ in-line 3 cylinders, liquid-cooled
with electronic fuel injection and electronic throttle
control
Bore & stroke 84 x 80 mm (3.31 x 3.14 in.)
Power 115 hp (85.8 kW) @ 7250 RPM
Torque 130.1 Nm (96 lb-ft.) @ 5000 RPM
CO2 emissions 155 g/km
Fuel consumption 6.3 l/100 km (37.3 mpg)
TRANSMISSION
Type Semi-Automatic with reverse function
Gears 6-speed
CHASSIS
Front suspension Double A-arms with anti-roll bar
Front shocks type / travel SACHS† Big-Bore shocks / 129 mm (5.1 in.)
Rear suspension Swing-arm
Rear shocks type / travel SACHS† Shock with self-leveling air preload
adjustment / 132 mm (5.2 in.)
Electronic brake
distribution system
Foot-operated, hydraulic 3-wheel brake
Front brakes 270 mm discs with Brembo† 4-piston fixed calipers
Rear brake 270 mm disc, 1-piston floating caliper
with integrated parking brake
Parking brake Electrically actuated
Front tires MC165/55R15 55H
Rear tire MC225/50R15 76H
Aluminum front rims 10-spoke, Neptune, 381 x 127 mm (15 x 5 in.)
Aluminum rear rim Carbon Black, 381 x 178 mm (15 x 7 in.)
CAPACITY
Rider capacity 2
Maximum vehicle load 199 kg (439 lb)
Storage capacity 138L (36.5 gal.)
Fuel capacity 27 L (7.1 gal)
Fuel type Premium unleaded
DIMENSIONS
SPYDER F3 LIMITED SPECIAL SERIES
L x W x H 2,820 x 1,497 x 1,241 mm (111.0 x 58.9 x 48.9 in.)
Wheelbase 1,709 mm (67.3 in.)
Seat height 675 mm (26.6 in.)
Ground clearance 115 mm (4.5 in.)
Dry weight 448 kg (988 lb)
INSTRUMENTATION
Type 10.25 in. touchscreen display with Apple Carplay
Main Functions Speedometer, tachometer, odometer, trip & hour
meters, fuel consumption average, gear position, ECO
mode smart assist, temperature, engine lights,
electronic fuel gauge, clock and more
Audio System BRP Audio Premium 6-speaker sound system with radio, USB
and Bluetooth†
SAFETY & SECURITY
SCS Stability Control System
TCS Traction Control System
ABS Anti-lock Braking System
DPS™ Dynamic Power Steering
Anti-theft system Digitally Encoded Security System (D.E.S.S.™)
HHC Hill Hold Control
COVERAGE
Factory Warranty 2-year BRP Limited Warranty
Roadside Assistance* 2-year roadside assistance provided by Allianz
Assistance, world leader in Automotive and Travel
assistance, on behalf of BRP.
FEATURES
Front fenders with integrated LED lights / Black
embossed seat with a “Limited” ingot / Cruise control /
Sport windshield / Glove box with USB port / Integrated
hard side luggage / Top case with integrated passenger
backrest / Removable driver backrest / Rider and
passenger heated grips / Rider and passenger footboards
/ Audio control keypad / Super sport grille / Short reach
handlebar / Top case rack / Comfort sea
