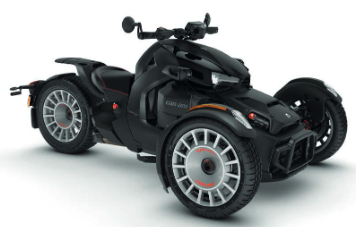

2024 RYKER RALLY

2024 RYKER RALLY
ENGINE
Type Rotax® 900 ACE ™ in-line 3 cylinders,
liquid-cooled with electronic fuel injection
and electronic throttle control
Bore & stroke 74 x 69,7 mm (2.9 x 2.7 in.)
Power 82 hp (61.1 kW) @ 8000 RPM
Torque 79.1 Nm (58.3 ft-lb) @ 6500 RPM
CO2 emissions 143 g/km
Fuel consumption 6.08 l/100 km (38.7 mpg)
TRANSMISSION
Type Automatic (CVT) with reverse function
CHASSIS
Front suspension Double wishbone
Front shock type / travel KYB† HPG with remote reservoir 4-positions
compression adjustable damping and preload
adjustment / 185 mm (7.28 in.)
Rear suspension Multi-link - mono swing arm
Rear shocks type / travel KYB† HPG with remote reservoir 4-positions
compression adjustable damping and preload
adjustment / 179 mm (7.05 in.)
Electronic brake
distribution system
Foot-operated, hydraulic 3-wheel brake
Front brakes 270 mm discs with Nissin 2-piston floating calipers
Rear brake 220 mm disc, 1-piston floating caliper
Parking brake Park lock
Front tires MC 145/60R16 66T
Rear tire MC 205/55R15 81T
Aluminum front rims Rally, Hyper Silver, 406 x 114 mm (16 x 4.5 in.)
Aluminum rear rim Rally, Hyper Silver, 381 x 165 mm (15 x 6.5 in.)
CAPACITY
Rider capacity 1
Maximum vehicle load 187 kg (412.2 lb)
Storage capacity 7 L (1.85 gal)
Fuel capacity 20 L (5.28 gal)
Fuel type Premium unleaded
Rotax® 900 ACE™
DIMENSIONS
L x W x H 2,532 x 1,522 x 1,090 mm (92.6 X 59.9 X 42.9 in.)
Wheelbase 1,709 mm (67.3 in.)
Seat height 676 mm (26.6 in.)
Ground clearance 122 mm (4.8 in.)
Dry weight 303 kg (668 lb)
INSTRUMENTATION
Type 4.5" digital display
Main Functions Speedometer, tachometer, odometer, trips,
distance to empty, engine lights, fuel gauge, clock,
ECO mode and Rally mode
SAFETY & SECURITY
SCS Stability Control System
TCS Traction Control System
ABS Anti-lock Braking System
Anti-theft system Digitally Encoded Security System (D.E.S.S.™ )
HHC Hill Hold Control
COVERAGE
Factory Warranty 2-year BRP Limited Warranty
Roadside Assistance* 2-year roadside assistance provided by Allianz
Assistance, world leader in Automotive and Travel
assistance, on behalf of BRP.
FEATURES
2 halogen headlamps (55 W) / Front fenders with
integrated LED lights / Dual USB port / Glovebox,
MAX Mount Structure / Reinforced rims / Rally tires /
Front grille protection / Structural hand guards / Rally
mode / Cruise control / Akrapovic† exhaust / Rally
handlebar / Rally comfort seat / Adjustable large
anti-slip foot pegs / Front vehicle protection / Large
aluminum skid plate / Air intake with pre-filter / Rally
mud flaps
